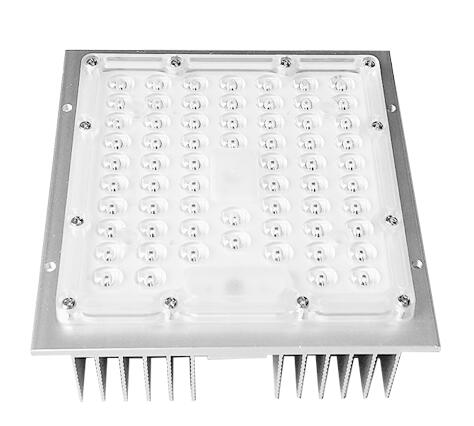

    64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W

    Ask Lasest Price
    Brand Name : Sunshineopto
    Model Number : SUN-SL130X130-64-3030-80X150
    Certification : SGS,ROHS
    Payment Terms : T/T,PAYPAL,Western Union,Money Gram
    Supply Ability : 5000pcs/months
    Delivery Time : 3-4 working days
    • Product Details
    • Company Profile

    64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W


    50W 64 LED Street light module , PC array lens 80x150 degree Square module with 3030 SMD LED 130-140LM/W


    Quick Detail:


    Model No.

    SUN-SL130X130-64-3030-80X150
    Beam angle80x150 degree
    Lens size130x130mm
    PCB board size115.59x115.59x1.5mm
    Material for lensPC with ANTI-UV
    LED chipPH 3030smd 1w 6v white color
    Circuit for board8 series 8 parallel, 48v for output voltage
    Series lens60 degree, 90 degree
    Heatsink size 50w150x146x45mm




    Features :

    1. This SKD 64 LED Array lens with PCB Module is best design power lamps like 50w and so on .
    2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
    3. Industry-leading thermal management utilizing technology
    4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
    5. The LED retrofit kits contain no any mercury or lead.
    6. Does not produce UV rays that harm people’s eyes.
    7. Directional light means no light pollution, dark sky compliance.
    8. Optic lenses are available for projects that need smaller beam angles, like 60x60 degree,90x90degree, 80x150 degree, 60x140 degree and so on.


    Applications:

    It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


    Specifications:

    1, Product Name

    50W 64 LED Street light module , PC array lens 80x150 degree Square module with 3030 SMD LED 130-140LM/W

    2, Model No

    SUN-SL130X130-64-3030-80X150

    3, Main parts

    64 Array lens , silicon gasket+PCB+LED+heat sink

    4, Lens Material

    PC

    5, Lens size

    130x130mm

    6, Transmittance

    91%

    7,LEDS

    3030 SMD LED, 140-150lm@ 150mA,6v

    8, Sample

    3-4 work day

    9, Delivery

    5-7 work days for 10000 sets

    10, Angle

    80x150 degree

    11, Quality guarantee

    If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

    12, Main market

    Europe, South America,North America, Asia



    Shipping and delivery time:

    DHL/UPS/TNT/FEDEX

    4-5 working days

    EMS

    10-15 working days

    HK Post Air Mail Register

    15-18 working days

    Trade Terms

    FOB|EXW|CIF|CFR

    Sample availability

    YES

    Delivery time

    3-4 working days



    LENS Dimensions :

    Dimensions for silicon gasket:

    Beam pattern:

    80x150 Degree:




    PCB board size:


    Heatsink:
