Brand Name : | SunshineOpto |
Model Number : | SUN-D252-84H1-136*78-TPII-S VERTICAL |
Certification : | SGS/ROHS |
Price : | need to negotiation |
Payment Terms : | T/T, Western Union, MoneyGram,PayPal |
Supply Ability : | 5000 sets per Month |
Delivery Time : | 5-8 working days |
84 points 50W Vertical Led Street Light Module
1, The module uses high-quality 3030 leds and we provide 2 years warranty .
2, The whole module can support 50watt-60watt ,The luminous efficiency can reach 150-160lm/watt ,
3, Note: This module is Vertical install way, please check with your lamp
housing.
Quick Details :
Product Information | |
Module No | SUN-D252-84H1-136*78-TPII-S VERTICAL |
Lens Angle | 136*78 degree VERTICAL |
Lens Size | 252x70 mm |
PCB Size | 239*45mm |
PCB Circuit | 7 series 12 parallel |
Match led | 3030 leds |
Kits | led lens+silicon gasket+pcb+leds |

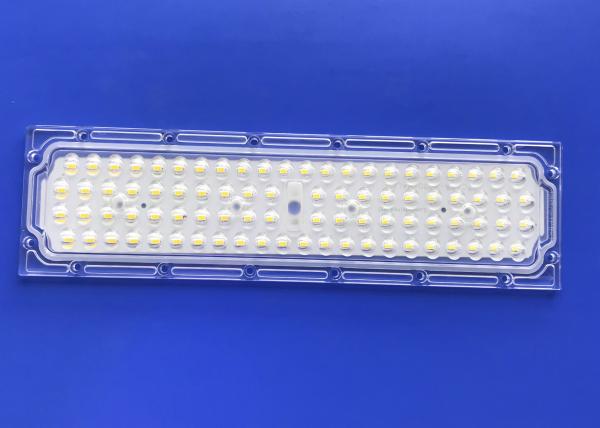

Product Picture :
PCB Details:
LED Lens Light Distribution :
Application :
Parking lot light ,Highway lamp ,street light ,etc .
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
![]() |
