30-60watt 5050 Led High-Efficiency Module For Street Light
1, The module uses high-quality 5050 leds and we provide 2 years warranty .
2, The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,
3, The size of this module is 236*70mm ,It's more common and can be
used to replace old products .
Quick Details :
| Model No.: | SUN-LD236X70-5050 |
| Angle: | 90*120°,80*150°,80*150°Vertical, |
| Lens Size: | 236x70mm |
| PCB Size: | 217.7x43.5x1.5mm |
| Lens Material: | Optical grade PC |
| Circuit: | 2 series 14 parallel |
| LED: | 28 pcs 5050 SMD LED |
Technical Parameters :
| Model No. | SUN-LD236X70-5050 |
| Power(W) | 30 | 40 | 50 | 60 |
| Voltage(Vf/V) | 46.03 | 46.50 | 47.25 | 47.08 |
| Current(If/mA) | 648.4 | 848.2 | 1048.3 | 1298.3 |
| Color Temp Tc(K) | 4000 | 4000 | 4000 | 4000 |
| Efficiency (lm/W) | Without lens | 173.87 | 171.37 | 165.00 | 160.04 |
| with lens | 156.53 | 150.83 | 145.90 | 143.27 |
| Luminous Flux (φv/lm) | without lens | 5189 | 6686 | 8124 | 9874 |
| with lens | 4614 | 5949 | 7227 | 8757 |
| Color Index(Ra) | >70 | >70 | >70 | >70 |
| Lens beam angle | 90*120°,80*150°,80*150°Vertical, |
| Wick | 28 pcs 5050 leds |
| Protection level | IP66 |
| Working temperature(℃) | -30 - 50 |
| storage temperature(℃) | -30 - 65 |
| Server Life(H) | 50000 |

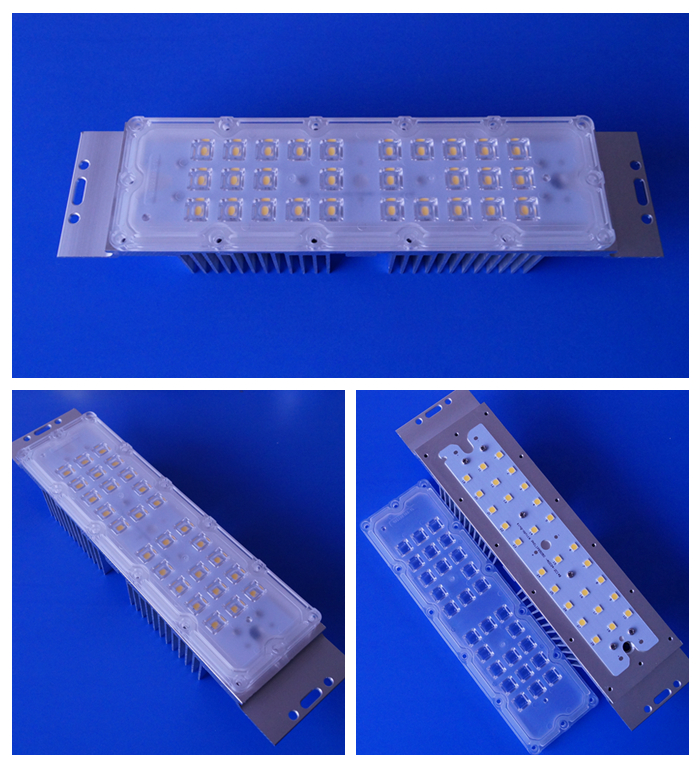

Product Picture :
We provide led street light parts, you need to assemble it
yourself, if you need us to provide assembly, we need to charge the
assembly fee .
Light distribution :
Package :
20sets/carton ,14kg ,55*33*21cm .
Application :
Highway lamp ,street light ,etc .
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
