130 Degree 5050 Led Linear High Bay Light Module
1, The module uses high-quality 5050 leds and we provide 2 years warranty .
2, The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,
3, The size of this module is 275*70mm ,It's more common and can be
used to replace old products .
4, 130 degree wide angle make the light range bigger .
Quick Detail :
| Model No.: | SUN-LD270X75-5050-130 |
| Lens size : | 270X75mm |
| Lens angle: | 130 degree TYPE5 |
| PCB Size: | 250X56X1.5mm |
| PCB Circuit: | 2 series 14 parallel for 5050 leds ,7 series 16 parallel for 3030
leds |
| Transmittance: | 90-93% |
| Match Led: | 28 pcs 4x3030/5050 leds |
Technical Parameters :
| Model No. | SUN-LD270X75-5050-130 |
| Power(W) | 30 | 40 | 50 | 60 |
| Voltage(Vf/V) | 46.03 | 46.50 | 47.25 | 47.08 |
| Current(If/mA) | 648.4 | 848.2 | 1048.3 | 1298.3 |
| Color Temp Tc(K) | 4000 | 4000 | 4000 | 4000 |
| Efficiency (lm/W) | Without lens | 173.87 | 171.37 | 165.00 | 160.04 |
| with lens | 156.53 | 150.83 | 145.90 | 143.27 |
| Luminous Flux (φv/lm) | without lens | 5189 | 6686 | 8124 | 9874 |
| with lens | 4614 | 5949 | 7227 | 8757 |
| Color Index(Ra) | >70 | >70 | >70 | >70 |
| Lens beam angle | 130 degree |
| Wick | 28 pcs 5050 leds |
| Protection level | IP66 |
| Working temperature(℃) | -30 - 50 |
| storage temperature(℃) | -30 - 65 |
| Server Life(H) | 50000 |

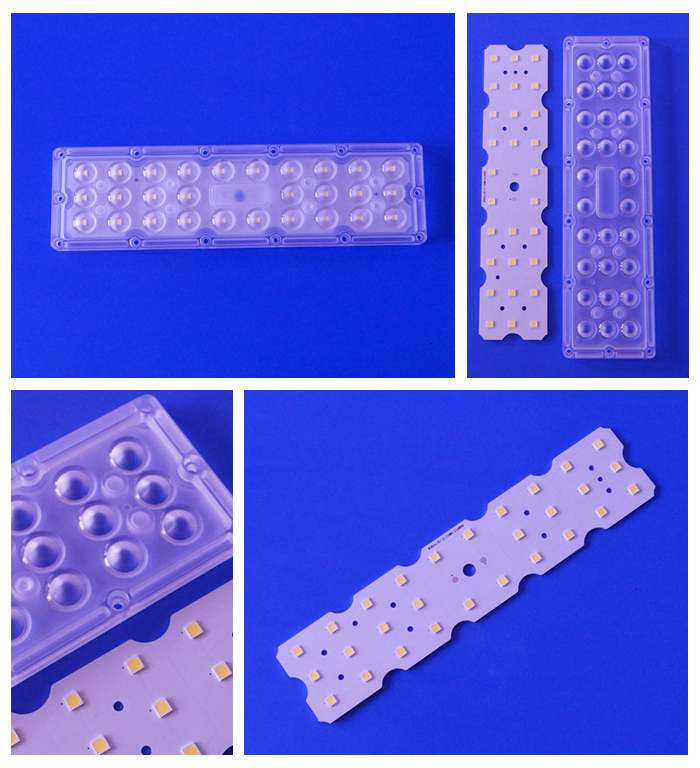

Product Picture :
We provide led Linear High light parts, you need to assemble it
yourself, if you need us to provide assembly, we need to charge the
assembly fee .
Light distribution :
Package :
20sets/carton ,14kg ,55*33*21cm .
Application :
Led Linear High Bay Light ,indoor light ,etc .
FAQ
Q1. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q2. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
