Pure White High Power COB LED Bridgelux Chip 15W 1500lm For Floodlight

Quick Detail:

1.Model :SP15W
2.Led holder size :29x20mm
3.Forward Voltage :12-15V
4.Test Forward current : 1050mA
5.CT : 2900-3200K , 4000-4500K , 4500-5000K,5000-5500K,5500-6000K,6000-6500K ,7000-9000K
6.Luminous Flux : 1350-1500lm
7.RA >65
8.Reverse Voltage >18 Reverse
9.current(uA) <30 ESD Sensitivity (V) 3000

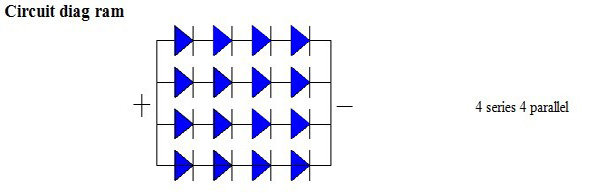

10.4 series 4 parallel

Usage: LED lighting , street light , flashlight , Floodlight etc.
Certificate: LM-80,ROHS

Description:

1. Best raw materials used in our LED production :
   1)Chip: Bridgelux or Epistar 45MIL chip;
   2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing);
   3) Powder: USA Intermatix (good powder has better performance in lumens);
   4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;
   5) Led base:red/ black cooper base .
   Super high Flux output and high Luminance ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
   We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow etc.
   6) Accept small Order & 2 years warranty .

Specifications:

The demensions of High power LED 15W as below :






Other Type of Holder For 15W High Power LEDs :


Competitive Advantage of SUNSHINEOPTO :

1. About 6 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.

Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight
