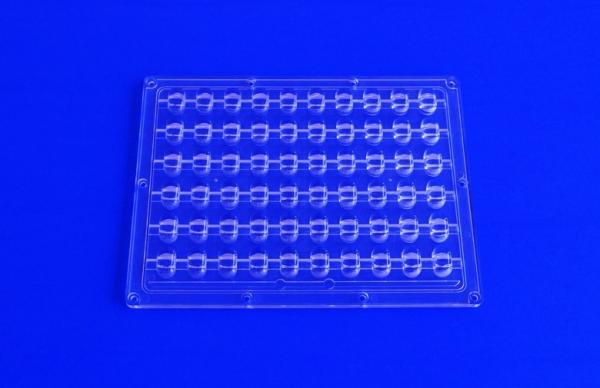

60W Led Reflect Lens For Led Street Light Retrofit Kits

Quick Detail:

1. 60W Lens Material: optical PC

2. Lens Beam Angle :60x120degree

3. Lens size:200x150x11.65mm

4. Led chips:Bridgelux|Edison

5.Certification:ROHS

6.Model No:SUN-L60X120ED803

Description:

How do SKD LED street light components retrofit kits replace MH or HPS Lamps ?

1). 30W LED retrofit kits can replace 100W Metal Halide or HPS bulbs.
2). 68W LED retrofit kits can replace 250W Metal Halide or HPS bulbs.
3). 110W LED retrofit kits can replace 400W Metal Halide or HPS bulbs.

4). 200W LED retrofit kits can replace 600W Metal Halide or HPS bulbs.
5). Use E40/E39/E26/E27 brackets to mount the retrofit kits to to the traditional light housings

Features :

1. This SKD 60W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W,120W and so on .
2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3. Industry-leading thermal management utilizing technology
4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5. The LED retrofit kits contain no any mercury or lead.
6. Does not produce UV rays that harm people’s eyes.
7. Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like 90x120°, 140x70°,120x60°, 90x126°etc.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .

Specifications:

Shipping and delivery time:

Parameters for AT1751 LED Constant Current driver :

Suitable for AC176V～265V Input voltage

Output power should be less than 75W

Input and output is isolated

Power factor is > 0.9

ROHS standard

Specification:

Competitive Advantage:

Advantages of skd LED street light components 60w retrofit kits:

1). Using high quality USA Bridgelux chips
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.
